Product Upgrade Notice: Application Database of all MEAN WELL KNX Products is available on ETS

MEAN WELL, the leading standard power supply manufacturer, continues to promote the building automation technology for making green and sustainable society. After the launch of KNX power supply KNX-20E-640, MEAN WELL continues to release KNX products such as universal switching actuator (KAA-8R), dimming actuator (KAA-4R4V), and KNX bus power supply (KNX-40E) and so on.

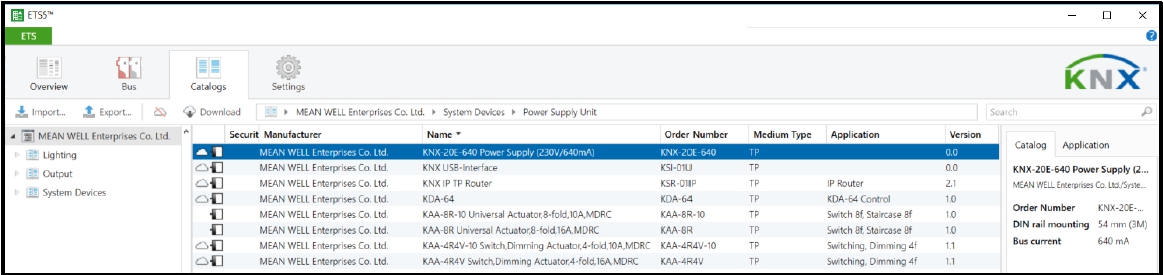

To further improve the accessibility of all KNX products, MEAN WELL is thrilled to officially announce that all the applications which need to be loaded into KNX devices, can now be downloaded from MEAN WELL websites. As the range of available KNX products keeps extending, this task such can be very cumbersome. However, with the ETS App "Online KNX Product Catalog", a better access method is provided. The required product catalogs can now be attained from within ETS4. The offered product catalogs can be differed by language and availability per country. Thus, system integrators can choose the language they are familiar with without downloading the whole product catalogs. MEANWELL KNX products support: English, German, Spanish, French, Italian, Dutch, Russian, Simplified Chinese...and many more!

Application Database for ETS

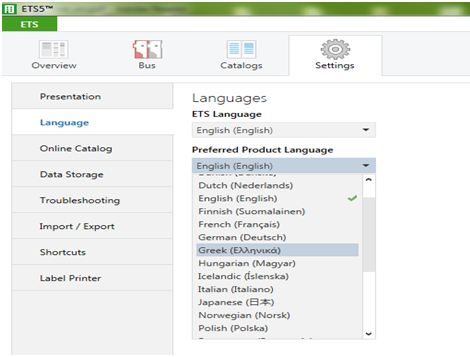

Multiple-Language Support

MEAN WELL KNX products support: English, German, Spanish, French, Italian, Dutch, Russian, Simplified Chinese...and many more.



Downloads

Users may download the database of each MEAN WELL product from below hyperlinks.


Actuator Series Version ETS4/5 History
KAA-8R-10 Universal actuators 8-fold 01 1.0 prod log
KAA-8R Universal actuators 8-fold 01 1.0 prod log

Dimming Actuator Series Version ETS4/5 History
KAA-4R4V-10 DC0-10V Dimming actuators 4-fold 01 1.1 prod log
KAA-4R4V DC0-10V Dimming actuators 4-fold 01 1.1 prod log
KDA-64 DALI gateway 01 1.0 prod --

Bus Power Supply Series Version ETS4/5 History
KNX-20E-640 Bus power supply 640mA 01 0.0 prod --
KNX-40E-1280 Bus power supply 1280mA 01 0.0 prod --

System Component Series Version ETS4/5 History
KSI-01U USB interface 01 0.0 prod --
KSC-01L LINE coupler 01 0.0 prod --
KSR-01IP IP router 01 2.1 prod --

Note: For the latest version Database of each MEAN WELL product, please always refer to ETS Online Catalog.
Note:  This document can also be found under the Downloads of Products in MEAN WELL Home website.
