RPS-500 Series 500W High-Power Miniaturized 5”x3” Medical Grade Open Frame Power Supply

Viewers : 2030




With optimism about the rapid development of the medical industry and increasing demands for standard power supplies, MEAN WELL is releasing the new 500W high power density RPS-500 series in order to fulfill the demands for higher power open frame solutions for medical electronics. In addition to the already released 30/45/60/65/75/120/160/200/300/400W products within the RPS product family, the RPS-500 expands MEAN WELL’s 5”x3” medical grade product offering up to 500W.

RPS-500 series comes with options for multiple form factors, including bare PCB (RPS-500), fanless covered (RPS-500-C), as well as chassis mount with built-in fans (top fan: RPS-500-TF; side fan: RPS-500-SF). With the various optional offerings, MEAN WELL is able to provide new standard power solutions for many different medical applications. The RPS-500 variants are all certified to the latest medical safeties such as IEC60601-1, ANSI/AAMI ES60601-1, and TUV EN60601-1. With 2xMOPP isolation level and ultra-low leakage current (<190uA), the RPS-500 is suitable for Type BF medical applications. The RPS-500 is able to perform exceedingly well in different types of treatment, diagnostic, laboratory, monitoring, and medical robotics applications.


    • 5”x 3” high-power miniaturized design
    • 2xMOPP isolation level, ultra-low leakage current < 190μA, suitable for use in BF type medical applications
    • Full range 80~264VAC input with built-in PFC function
    • 320W with cooling by free air convection and 500W with 25CFM forced air, 550W peak load (3 seconds)
    • Suitable for installation in Class I (with FG) or Class II (no FG) systems
    • No load power consumption < 0.5W
    • High efficiency up to 94%
    • -30～+70℃ wide operating temperature range
    • Operating altitude up to 4000 meters
    • Protections: short circuit/overload/over voltage/over temperature
    • Additional functions: 5Vsb and 12Vdc/0.5A auxiliary power, voltage compensation, P.G. and P.F. signals
    • UL/cUL/TUV/EAC/CB/CE medical safety approved
    • LED indicator for power on
    • Dimensions (LxWxH): 127x76.2x40mm
    • 3 years warranty

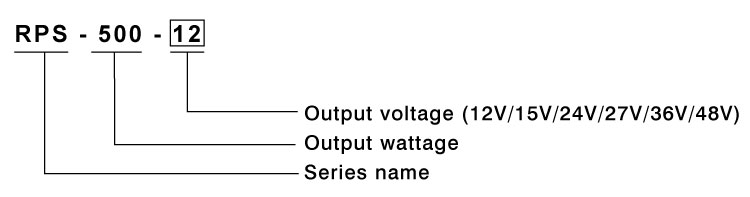

RPS-500 Series
