Since MEAN WELL introduced its Virtual Expo, it has actively expanded the exhibition halls by introducing wide product range for multi-industry applications. The C1. Accessories Hall has also successfully integrated various components and accessories that become the preferred one-stop platform for customers to purchase, accelerating the design and development process of customers' system products. In addition to being the most reliable power partner, MEAN WELL provides products, technical service and certification services that support system design/verification and becomes high efficiency system power solution. This article serves as an example of total power supply solutions.

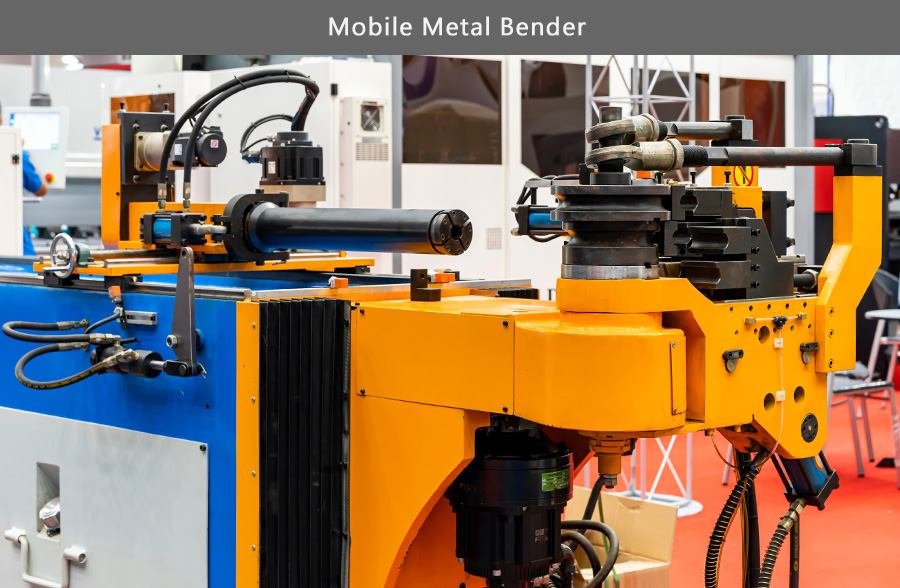

A conduit manufacture company was looking for highly specialized power supply solution for one of their automated conduit bender machines—a precision machine uses to bend electrical conduit. The project presented a multifaceted engineering challenge: a compact power unit to fit within a wall-mounted enclosure, high thermal performance, user friendly and mechanical constraints. Moreover, the power supply needed to deliver robust output to simultaneously power a high-torque motor and charge an onboard battery, ensuring seamless compatibility with the broader system architecture.

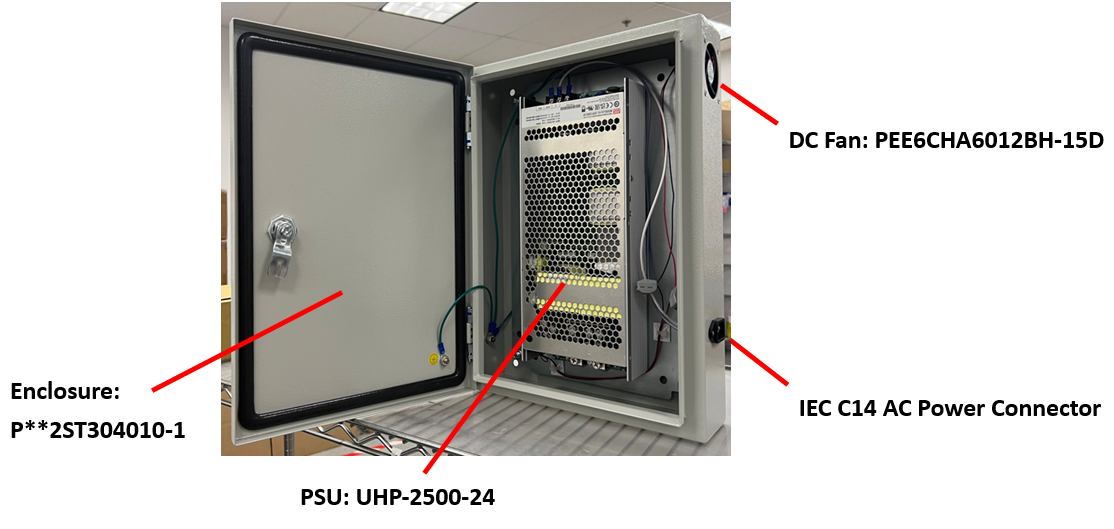

Understanding the application requirements, MEAN WELL power solution team optimized the power design by integrating the compact and slim UHP-2500-24 power supply unit to meet the mechanical requirement and supporting both a high-torque motor and onboard battery charging simultaneously. To support the design implementation, The MEAN WELL one stop shop (C1 Accessories Hall) offers suitable enclosure and an active DC cooling fan to fulfill the form factor and thermal requirements. The result was a well-balanced solution that delivered strong performance, effective thermal management, and dependable operation.



In conclusion, this project highlights the strength of teamwork and innovation. MEAN WELL power solution delivered high-quality components that helped overcome tough engineering challenges on a tight schedule. By acting as a one-stop shop, MEAN WELL provided not only power supplies but also fan units, enclosures—enabling a total solution tailored for this project. The team's hands-on approach, including rigorous testing and temperature validation, played a key role in resolving technical issues. The result is a compact, reliable power system that meets high performance and integration demands—paving the way for future scalable solutions.

For related product and application requirements, please contact MEAN WELL distributors or MEAN WELL application engineers.
Also, do not forget to stay tuned for online products and solutions courses on MEAN WELL virtual EXPO.
